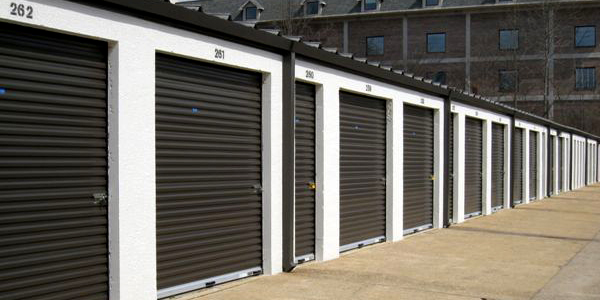

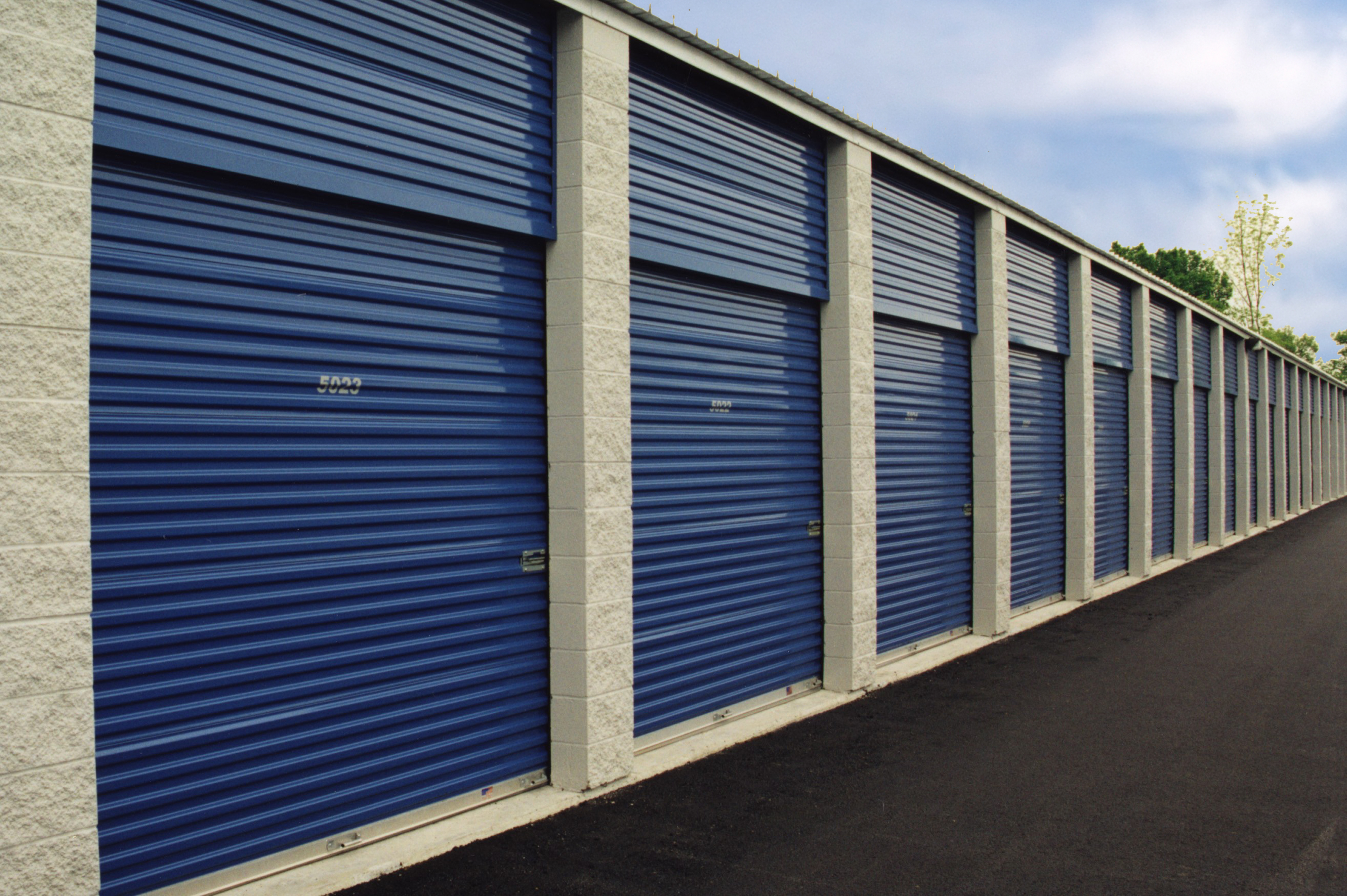

690 Series When reliable performance in geographies often susceptible to high-wind events like tornadoes and hurricanes is required, DBCI's 690 Series is the optimal choice. Previous Next
Product Information Designed to operate smoothly and perform well in severe weather conditions, this metal roll-up door won't buckle, bow, bend, become misaligned from the tracks or separate from the door frame during strong storms and wind events.
Features Curtain26-gauge galvanized, Grade E hard steel5/8" ribbed corrugationMax opening size 10' x 10'Siliconized polyester WeatherXL™ paint over prime coatBottom Bar6063 - T6 aluminum extrusion1 1/2" x 1 1/2" galvanized anglesReplaceable bulb astragalAxle-Drum Assembly1 5/16" O.D. steel axle, 14-gaugeUtilizes 9 1/2", 18-gauge drumsOil tempered e-coated torsion springs, available in two springs upon request from 7' to 10' wideFully accessible springs for inspection and maintenanceGuide System16-gauge galvanized steel guides and wind barPre-punched holes for anchors, slide latch, bracket attachment and head stop attachementPolyethylene guide strips provide easy, quiet operationHardwareStainless steel standard latch12-gauge head stops have slotted mounting holes for proper attachment14-gauge galvanized steel handles12-gauge tension bracket made for additional strengthShielded radial bearings for smooth operationGear-driven tensioning bracket allows for smooth adjustment12-gauge bearing bracket on right sideOptionsTop and draft stopADA KitsCan be paired with the Liftmaster 8950 motor operatorAvailable with insulation as the 691 Series Door
Related Documents Product Info DBCI Door Comparison Chart ShedMaster Motor Data Sheet EasyRoller Motor Data Sheet Corrugated Drum Data Sheet DASMA Wind Load Calculator 690 Series Installation Instructions DBCI Products & Services Brochure Color Chart ADA Kit Brochure 690 Series Data Sheet Testing DBCI ETB Florida Approvals 001-01-12 Technical Info DBCI TDI Wall Panels Engineering Technical Bulletin DASMA Rolling Door Technical Data Sheet #276 690 Series CAD Details ADA Standards Technical Info DBCI Product Warranty DBCI Paint Warranty
Available Colors Click on a swatch to see a larger view. Note: Colors marked with an asterisk (*) are non-standard colors and additional lead times may apply.
